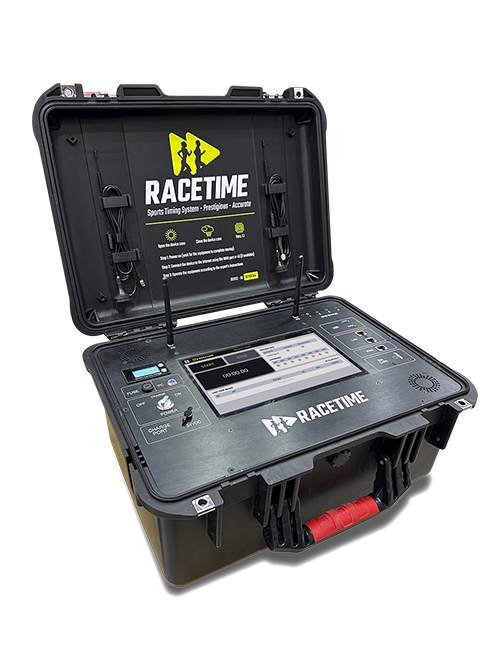

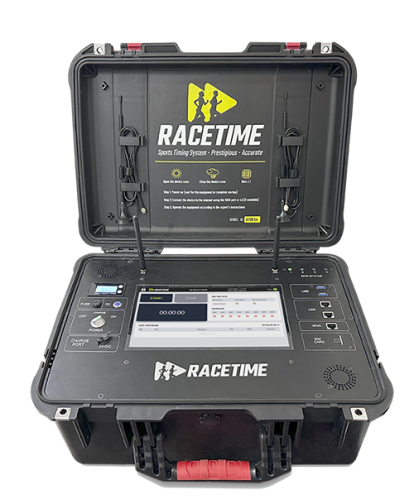

RaceTime Reader
Racetime is a race timing system for any type of sport. It supports mass events such as marathons, road races or mountain bike races.
The Racetime Decoder dis the heart of the RaceTime timing system. It receives signals from the transponder, calculates the exact finish time and provides data to the scoring software in real time. The system runs independently of your computer and the power source. The integrated 4G module enables worldwide mobile network connectivity.
Timing for sports events
- Marathon
- Triathlon
- Cycling
- Patin
Operating performance
- Battery life 8-10h (passive) / 24h (active)
- Accurate, synchronized GPS time
- Integrated 4G/LTE module
- Easy setup and handling
- Update firmware online
Operability
- Operation on touch screen
- All in one, carry and go device
- Cloud data management
- Accurate and reliable reading
- Internet time synchronization, time error is less than 0.05 seconds
- Rugged safety case to protect the device
Techical Specifications
Safety standards
- Protection class with lid closed: IP54
- Regulatory compliance: CE, RoHS, FCC
- Relative humidity: Max. 90% non-condensing
- Temperature range -20°C to 50°C
Power and Battery for the Racetime Reader
- AC power source: 110V - 230V, 50 - 60Hz
- DC power 12V - 14V 2A (when fully charged)
- 15Ah flight safety battery (Pb) IATA - A48/A67
- Charging time 4h (turned off) 7h (running)
- Power consumption 26W (full battery) 60W (charging)
Ports and Connectivity features
- GPS receiver: internal 50 channel uBlox
- 2 x LAN Ports: 100MBit /10MBit
- USB Thumb drive for backup
- 8 x BNC antenna ports
Module LTE/4G/3G/2G
- Module 4G/LTE/3G/2G
- Antenna: Inside SMA - Outside
- SIM card: Standard
Contact UsGet In Touch With Racetime
Timing solution for leading professional sports tournaments in Vietnam based on RFID technology
Accurate results
RFID technology records achievements and updates them immediately on the results page
The system is stable and flexible
Flexible system, suitable for a variety of sports such as running, mountain running, cycling, triathlon
